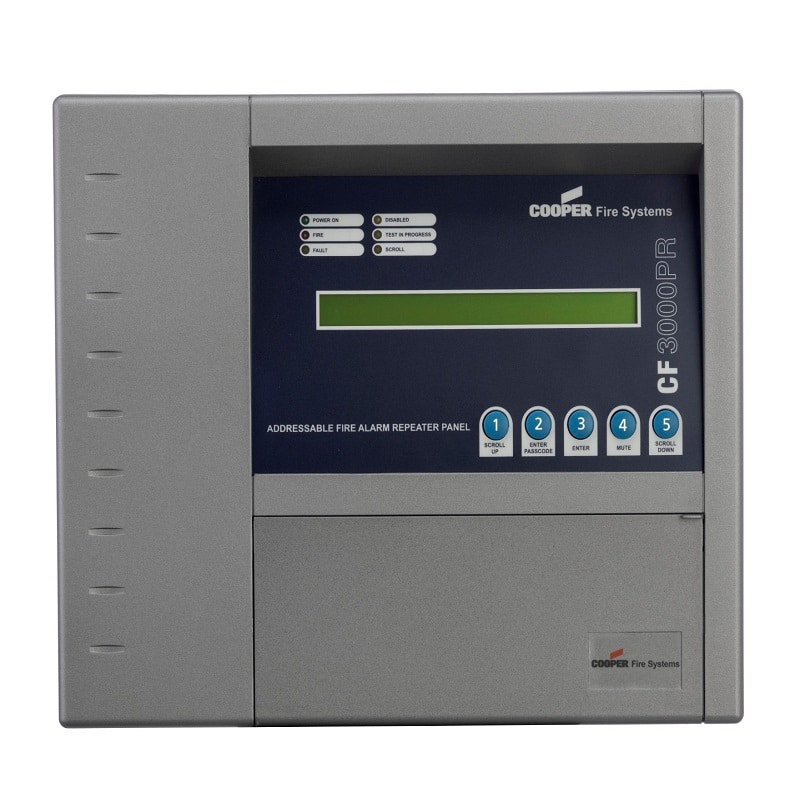

Eaton CF3000PRG Intelligent Addressable Passive Repeater Panel
See all products from eatonAED 1,748.25 VAT included
The CF3000PRG is a cost effective passive repeater panel which can be programmed via its informative display to be either fully passive (display only) or semi passive (restricted system control).
In stock
Product Code : fs108340
Brand: Eaton
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The CF3000PRG is a cost effective passive repeater panel which can be programmed via its informative display to be either fully passive (display only) or semi passive (restricted system control).
When loop connected the repeater panel will display the system information text of the connected control panel and will provide a fire indication, with panel number, of any connected network control panel that has fire activation.
The CF3000PRG repeater panel only requires programming with local text information.
In addition to the repeater panels main menu driven 2 x 40 backlit LCD display, which provides system status information, it also has 6 supervisory LED’s (power on, alarm, fault, supervisory, test in progress, and scroll).
Features
- 2 x 40 Backlit LCD display
- 6 Supervisory LEDs
- Loop and network connected versions available
- Maximum of 20 repeaters can be connected to a loop
- Integral battery and power supply
- Can be surface or semi-recessed mounted
- Compact economy panel
- Menu driven LCD display
- Reduced wiring and installation costs
- Numeric access code (no lost keys)
Specifications
- Brand: Eaton
- Code: CF3000PRG
- Description: Passive Repeater Panel
- Standards: EN54 Pt4
- Mains Input Voltage: 230Vac +10%/-15%
- Operating Voltage: 24Vdc
- System Indicators: Power on, Fire, Fault, Test, Disable and Scroll
- System Controls: Silence alarms, Evacuate and reset only
- Input Ports: RS232 (for connection of programmer)
- Battery: 2 x 12V 3.2Ah
- Standby Duration: 24hrs
- Operating Temperature: -5°C to +40°C
- Humidity (Non-condensing): 0 to 75% RH
- Construction: PC / ABS
- Colour: Graphite
