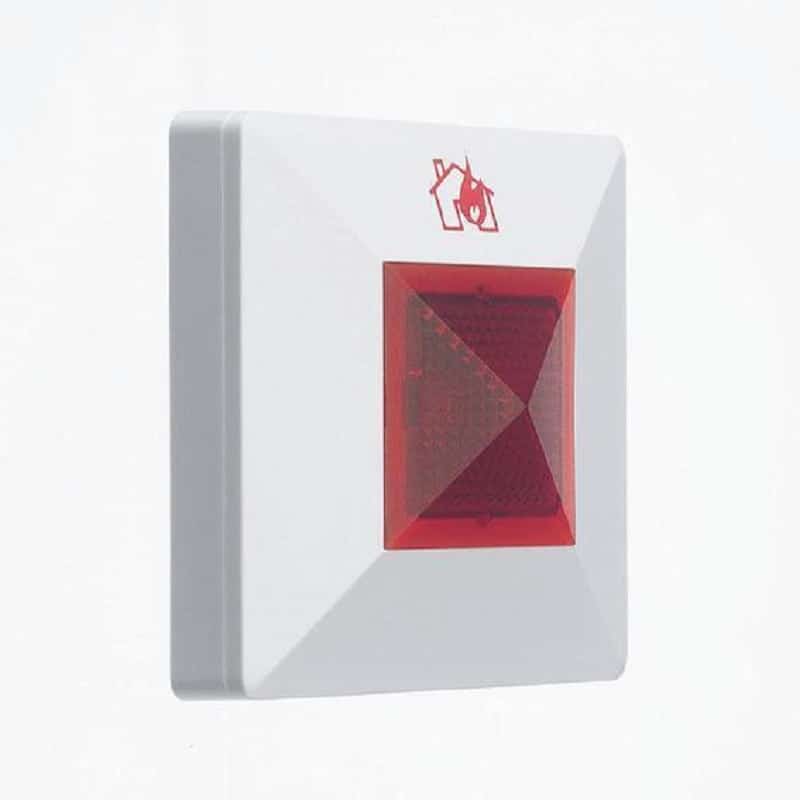

The intelligent addressable loop connected remote indicator (MRIAD) is designed to provide discreet remote indication, which is controlled by the intelligent addressable control panel, whilst providing the ability to monitor multiple sensors within an area thereby minimising wiring requirements.

The (MRIAD) is compatible with the Cooper range of intelligent addressable fire systems.

The device is connected directly on to the loop, and is soft addressed by the panel on system start up and is fitted with integral short circuit isolators.

When using site installer the intelligent addressable loop connected remote indicator should be programmed as an address output (sounder) and can be programmed using the comprehensive cause and effect tables to operate continuous, pulsing, by global, panel, zone, address or on double knock input etc.

Benefits

Quick and simple to install
Wide viewing angle for increased visibility
Discreet design for incorporation in to any decor
Can be remote mounted
Can be activated by cause and effect programming
Reduced cost
Minimises cabling
Easy to maintain/service
