Extech – 160W Switching Power Supply – DCP42
AED 2,499.00 VAT included
Extech – 160W Switching Power Supply – DCP42
Out of stock
Product Code : fs0506517
Brand: Extech
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

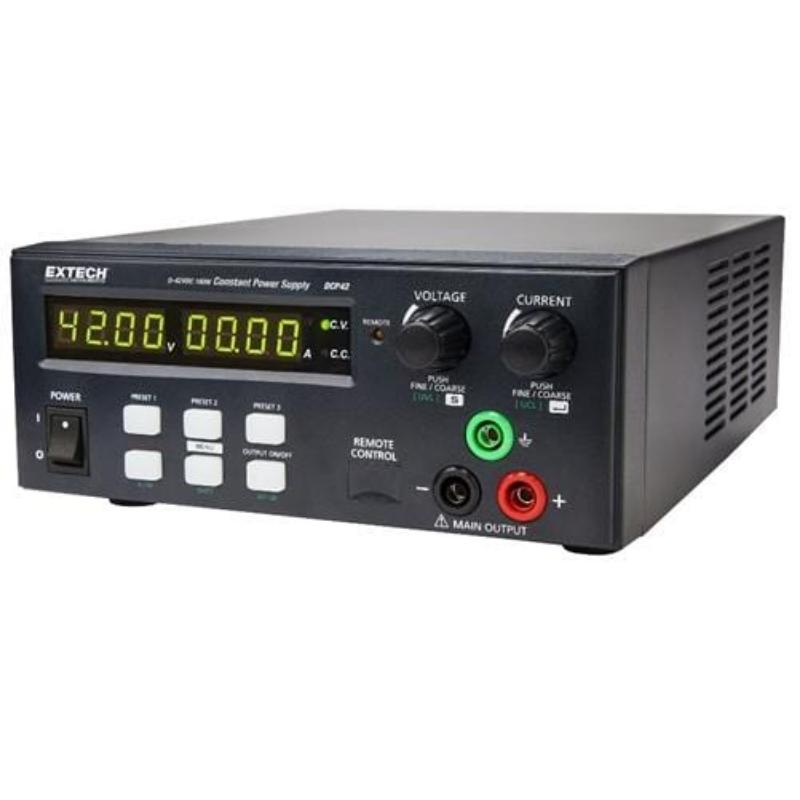

DCP42 is a 160W Switching Power Supply. Single Output Continuous Switching Power Supply with USB offers high efficiency electrical power conversion for greater energy conservation and lighter weight. Complete with power cord, software, and USB cable. Software includes DC ramp and waveform generator.
Features
- Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W)
- At maximum current (10A), voltage is limited to 16V
- At maximum voltage (42V), current is limited to 3.8A
- Dual action rotary encoder control with push knob for fine and coarse tuning
- Remote control for Programming, Output Voltage/Current, and ON/OFF using supplied software, driver, and USB
- Three on-board user-defined Voltage/Current presets
- Store 20 presets with up to 999 cycles each on a PC via USB and supplied Software
- Software also includes DC Ramp and Waveform Generator
- Complete with power cord, software, and USB cable
Specifications
- Brand: Tekneka
- Product: 160W Switching Power Supply
- Model: DCP42
- Output Voltage: 0 to 42V
- Output Current: 0 to 10A
- Basic Accuracy: ±(0.2%+5 counts)
- Load Voltage Regulation: ?0.15% (10-100% rated current)
- Line Voltage Regulation: ?0.02% (90-264V AC)
- Load Current Regulation: ?0.5% (10-90% rated voltage)
- Line Current regulation ?0.1% (90-264V AC)
- Ripple and Noise ?5m Vrms, ?50m Vp-p
