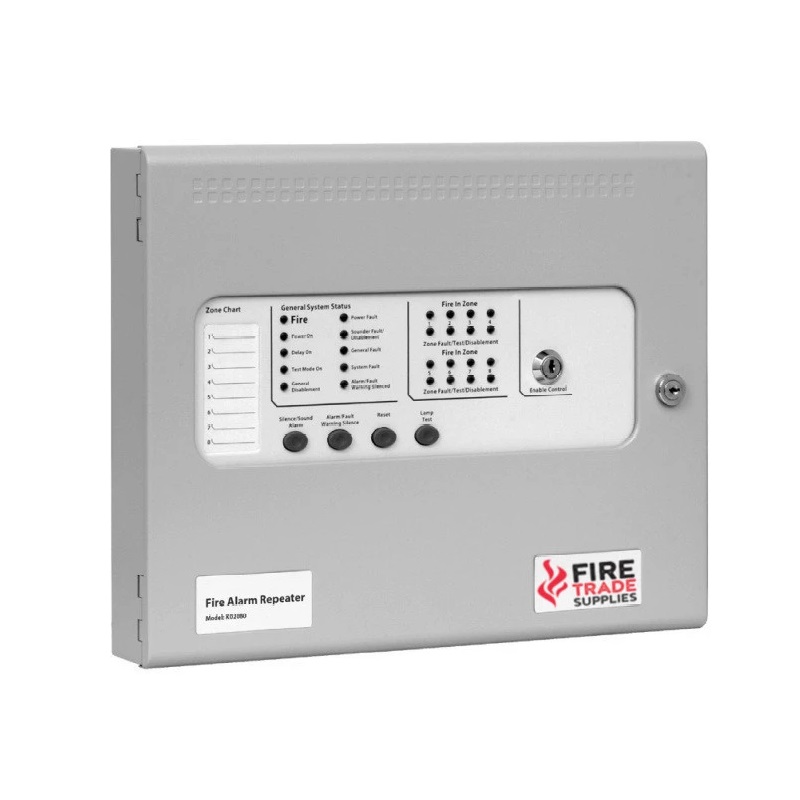

Kentec Sigma CP-R E0180L2 8 zone repeater panel
AED 1,010.10 VAT included
Kentec Sigma CP-R E0180L2 8 zone repeater panel is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel.
Product Code : fs1118233
Brand: Kentec
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Kentec Sigma CP-R E0180L2 8 zone repeater panel is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
Features
- Volt free fire and fault contact outputs
- 230V AC or 24V DC powered versions
- Full control over main panel
- Two wire serial connection
- Up to 7 panels per system
Specifications
- Product: 8 Zone Repeater Panel
- Brand: Kentec
- Model: E0180L2
- LCMU Included: 24V DC
- Standby Current: 0.075 Amps
- Alarm Current: 0.11 Amps
- Size (mm): 385 x 310 x 60
- Power Supply DC rating: 24V 1 Amp
- Maximum battery size: 7aH 12V (2 per panel)
- Weight: 6kg
