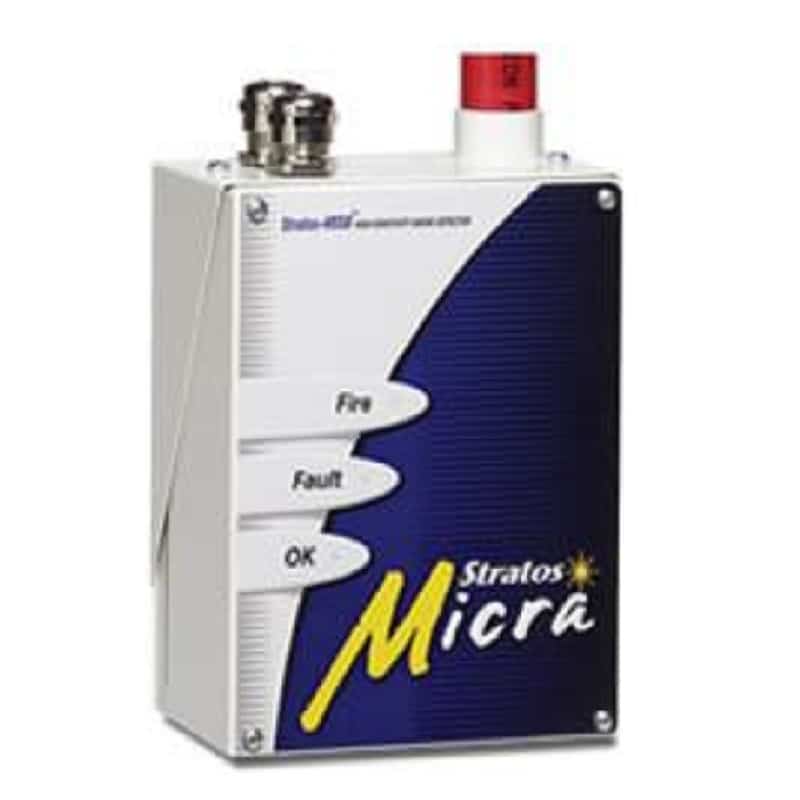

Kidde Airsense 30760 Stratos Micra 25 Basic Detector + Docking Station + Relay Card. This unit is the same as the 30671 detector but includes a relay interface card (part no. 30436). The input relay card provides four alarm level relay outputs, a fault output and three pairs of input terminals. Shorting together the relevant pair of input terminals, will activate one of the following features: Remote Reset, Remote Isolate, Remote Day/Night Switching or ClassiFire Override. Alternatively these inputs can be used to monitor a power supply with a N/C fault output.
This unit is a sub-miniature very high sensitivity aspirating detector with sensitivity scale ranging from ‘hypersensitive’ to ‘low’ sensitivity (0.002 – 25% obs/metre), depending upon environment. This product employs an updated Artificial Intelligence system known as ClassiFire-3D to allow it to automatically adjust sensitivity with no external input. The system also incorporates Laser Dust Discrimination (LDD), making this product suitable for a wide range of environments, including most dusty or dirty areas.
