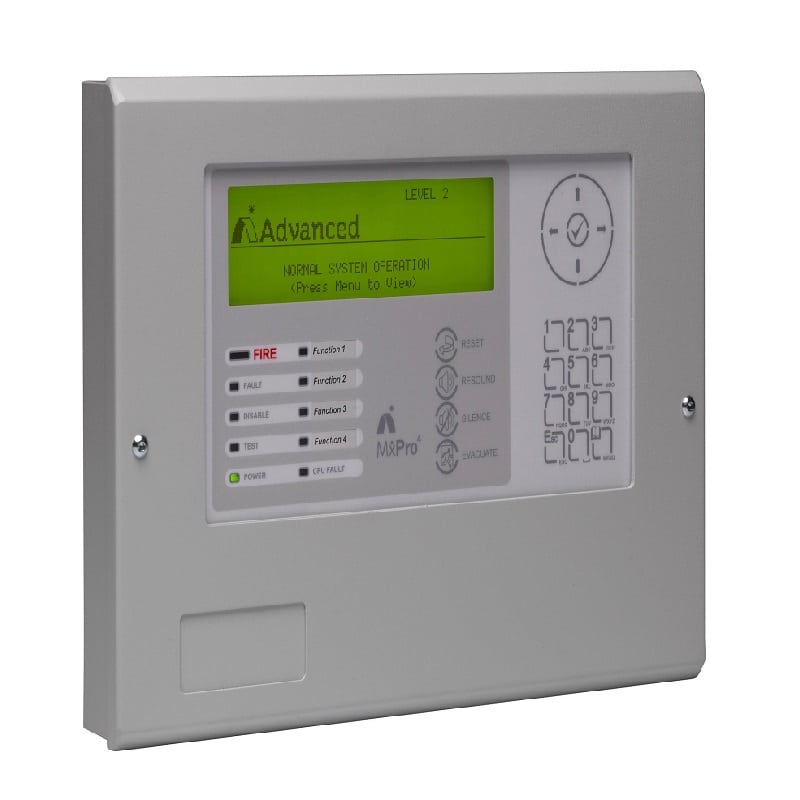

The MX-4020 utilises the same graphical LCD user interface that can be found on the MX-4000 series panels and is based upon the same flash based, microprocessor technology.

All MX-4000 series panels and remote terminals can communicate over the same 2-core network cable.

The display information is fully programmable by individual zone or sector and can display any combination of fires, faults, pre-alarms or plant alarms. E.g. can display all information in its own sector, but only shows fire signals from other sectors of a building.

Incorporates Buzzer Mute, view, enable/disable and test facilities with dedicated system navigation keys for simple user control.

The RCT has additional sector based control keys for Evacuate, Silence, Resound and Reset, which allows other networked panels to selectively respond to controls as programmed. E.g. on a site with multiple buildings, a user may be allowed to silence and reset fires originating in their own building. Fires originating from other buildings are displayed but cannot be reset.

Fully on-site programmable via an on-board alphanumeric keypad or PC configuration tools.

By using flash memory and an advanced graphical display the MX-4010 can be easily configured to operate in virtually any language, with any character set and allows for the installer’s logo and company details to be displayed on the LCD display during normal operation.
