Paige 459841, 2 Core 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR

Name: Paige 459841, 2 Core 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR
SKU: fs0507268
Price: 1155.00 AED
Availability: InStock

AED 1,155.00 VAT included

Compare

Product Code : fs0507268 Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

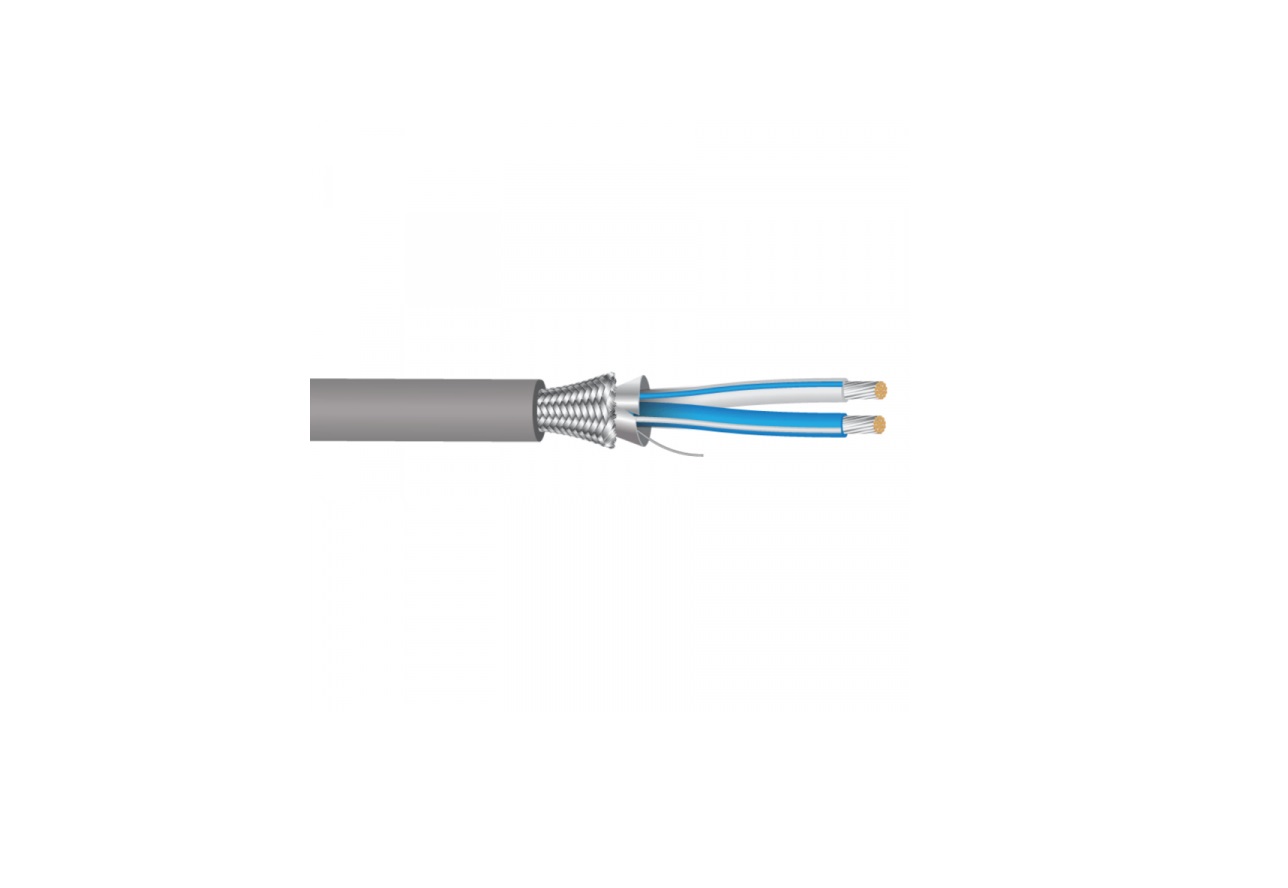

Paige 459841, 2 Core 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR consists of 2 conductors 24 AWG stranded tinned copper; color-coded plenum rated foam FEP (low smoke & fume) insulation; overall aluminum mylar shield with drain wire; tinned copper braid; overall plenum rated PVC (low smoke & fume) jacket.

Features

Conductor Material: Tinned Copper
Conductor Size: 24 AWG
Insulation Material: Plenum Rated Foam FEP (low smoke & fume)
Insulation Wall Thickness: .016”
Color code: White/Blue x Blue/White
Jacket Material: Plenum Rated PVC (low smoke & fume)

Specifications

Product : Paige 459841, 2 Core 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR
Impedance: 102 ohms +/- 10%
Capacitance: 12.8 pF/ft.
DC Resistance: 24.5 ohms/M ft. @ 20oC
Voltage: 300 Volt max.
