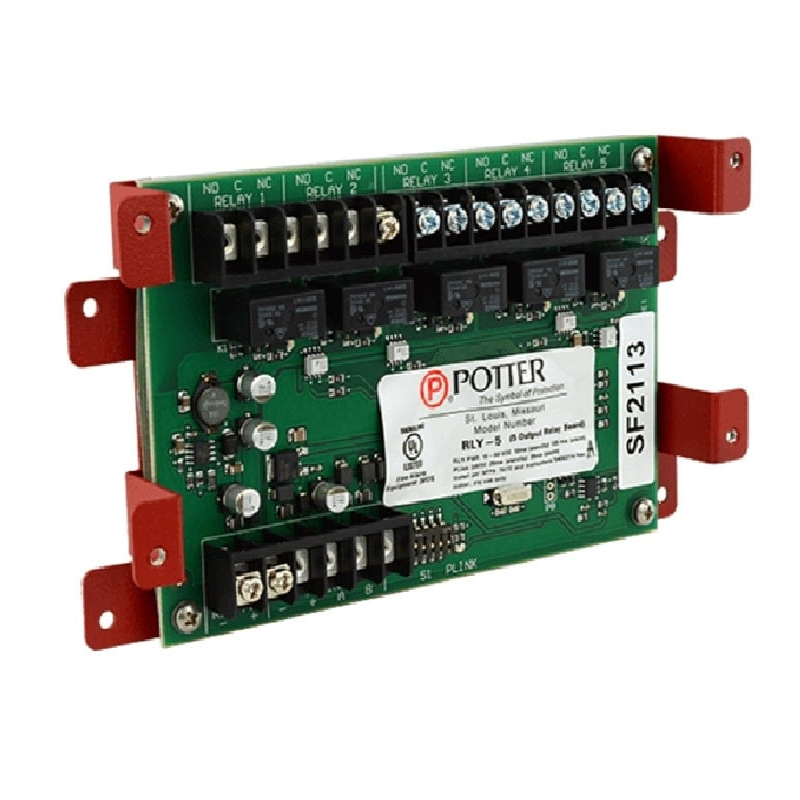

Potter RLY-5 Relay Expander
See all products from potterAED 1,299.90 VAT included
Poter RLY-5 relay expander is compatible for Potter fire alarm control panels. The RLY-5 communicates with the control panel via the RS-485 (P-Link) communication bus providing 5 user configurable relay outputs programmable with the Potter Configuration Software.
The RLY-5 is connected to a four wire RS-485 (P-Link) connection. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.
Product Code : fs107704
Brand: Potter
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Poter RLY-5 relay expander is compatible for Potter fire alarm control panels. The RLY-5 communicates with the control panel via the RS-485 (P-Link) communication bus providing 5 user configurable relay outputs programmable with the Potter Configuration Software.
The RLY-5 is connected to a four wire RS-485 (P-Link) connection. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting. This connection is power limited and supervised. The RLY-5 can be installed in the AE-2, AE-8, and AE-14 Accessory Enclosures. The RLY-5 can also be installed inside the PSN-1000E Intelligent Power Supply and larger control panel enclosures that include space for mounting stacker bracket modules.
Features
- Mounts with included stacker bracket
- Provides 5 user configurable relays
- Contact Rating of 24VDC / 3.0A, 125 VAC / 3.0A (resistive)
- Maximum 31 RLY-5s per panel
- Maximum P-Link wire length of 6,500 feet.
- The product includes a 5-year warranty
- UUKL Listed for Smoke Control
Specifications
- Alarm Current: 35mA
- Standby Current: 25mA
