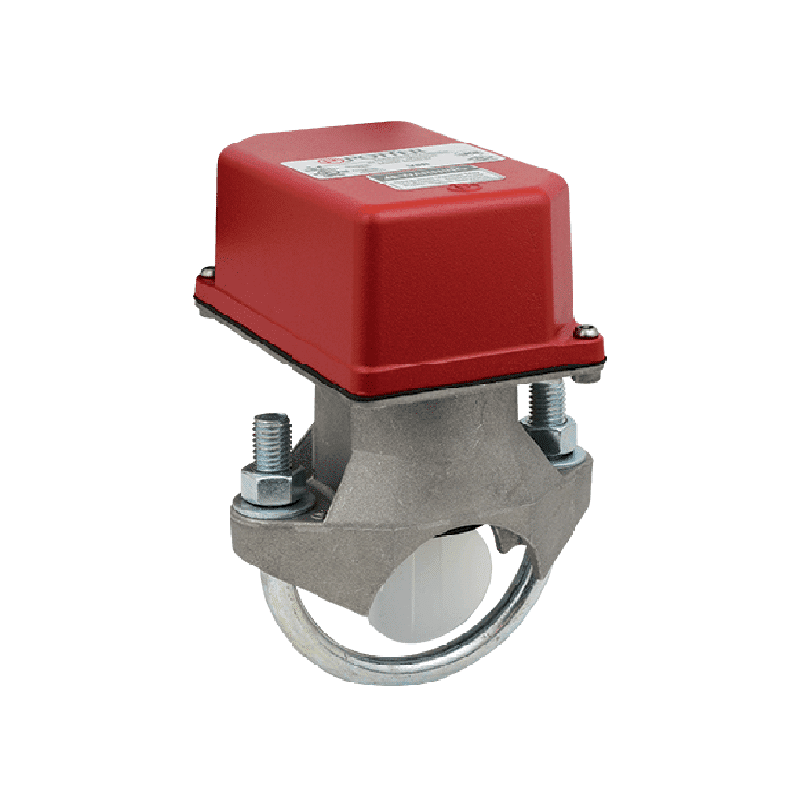

Potter VSR Series Vane Type Waterflow Alarm Switch

Name: Potter VSR Series Vane Type Waterflow Alarm Switch
SKU: fs107298
Availability: InStock

AED 609.00 – AED 1,785.00 VAT included

Compare

Product Code : fs107298 Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Potter VSR is a vane type water flow switch for use on wet sprinkler systems. It is UL Listed and FM Approved for use on steel pipe; schedules 10 through 40, sizes 2 Inch thru 8 Inch (50 mm thru 200 mm) and schedule 5, sizes 2 Inch thru 6 Inch. LPC approved sizes are 2 Inch thru 8 Inch (50 mm thru 200 mm). See Ordering Information chart. The VSR may also be used as a sectional water flow detector on large systems. The VSR contains two single pole, double throw, snap action switches and an adjustable, instantly recycling pneumatic retard. The switches are actuated when a flow of 10 GPM (38 LPM) or more occurs downstream of the device. The flow condition must exist for a period of time necessary to overcome the selected retard period.

Features

VSR contains two single pole, double throw, snap action switches and an adjustable, instantly recycling pneumatic retard.
vane type water flow switch for use on wet sprinkler systems.
It is also used as a sectional water flow detector on large systems.
The switches are actuated when a flow of 10 GPM (38 LPM) or more occurs downstream of the device.
The flow condition must exist for a period of time necessary to overcome the selected retard period.
Non-corrosive sleeve factory installed in the saddle.

Specifications

Product: vane type water flow switch
Brand: Potter
Maximum Surge: 18 FPS (5.5 m/s)
Service Pressure: 450 PSI (31 BAR) UL
Flow Sensitivity Range for Signal: 4-10 GPM (15-38 LPM) UL
Contact Ratings: Two sets of SPDT (Form C) 10.0 Amps at 125/250VAC 2.0 Amps at 30VDC Resistive 10 mAmps min. at 24VDC
Conduit Entrances: Two knockouts provided for 1/2? conduit. Individual switch compartments are suitable for dissimilar voltages.
Environmental Specifications: NEMA 4/IP54 Rated Enclosure suitable for indoor or outdoor use with factory installed gasket and die-cast housing when used with appropriate conduit fitting.
Temperature Range: 40°F 120°F, (4.5°C 49°C) UL
Service Use: Automatic Sprinkler NFPA-13, One or two-family dwelling NFPA-13D, Residential occupancy up to four stories NFPA-13R, National Fire Alarm Code NFPA-72
