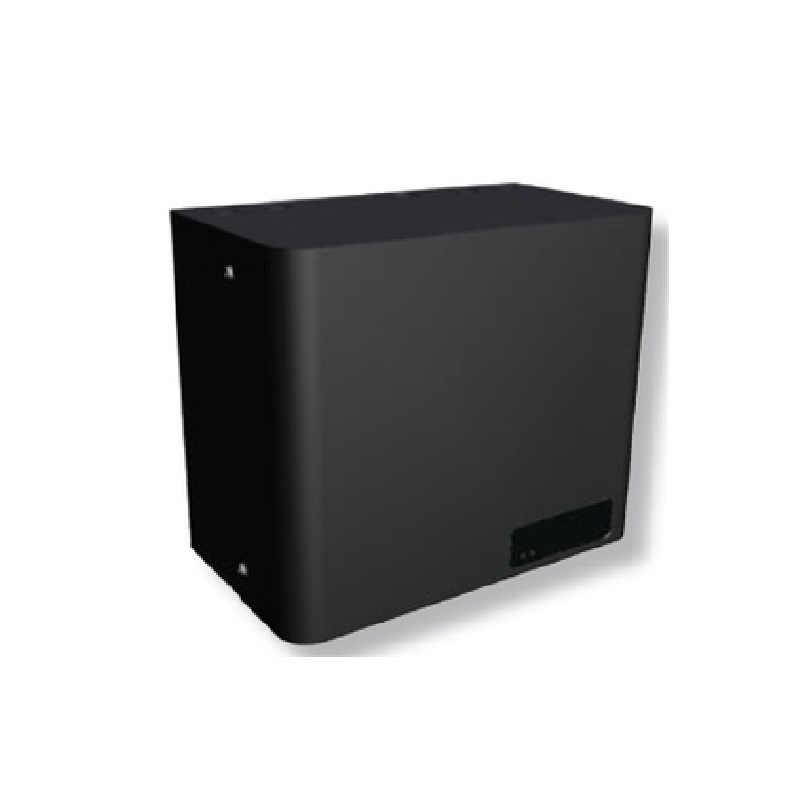

Vesda Xtralis VPS-220-STX5 Power Supply Unit VESDA-E PSU STX 0.5A 14AH (Black)
AED 2,887.50 VAT included
Description
Vesda Xtralis VPS-220-STX5 Power Supply Unit is uniquely designed to complement the style and appearance of VESDA-E aspirating smoke detectors (ASDs) and is technically matched to provide sufficient current and battery charging capacity to meet the requirement of EN 54-4. The STX variants are VdS certified and CE marked to EN54-4 so are particularly suitable for use in territories where these approvals are required.
Features
- Relay outputs for connection to the general-purpose input for fault monitoring.
- Temperature compensated charging to maximize battery life
- Knockouts designed to line up with VESDA-E detectors
- Designed to blend in with VESDA-E detectors
- External LED indication
- 230Vac only
Specifications
- Product: Power Supply Unit
- Brand: Xtralis
- Model: VPS-220-STX5
- Nominal AC Supply Voltage: 230Vac (tested +10% -15%)
- Power Output: 20.0 - 30 Vdc
- Load: 0.5 / 1.0A (1A non-certified to EN54-4)
- IP Rating: IP 30
- Recommended Battery: Tested with Yuasa Yucel Y series
- Dimensions (H x W x D): 300mm x 350mm x 135mm
- Weight: 4.5kg (without batteries); 16kg (with max batteries)
